50 Ohm N male To 75 Ohm N Female Impedance Matching Pad Operating From DC to 3 GHz RoHS Compliant agilent11852b

agilent11852b

50 Ohm N male To 75 Ohm N Female Matching Pad Operating From DC to 3 GHz RoHS Compliant agilent11852b

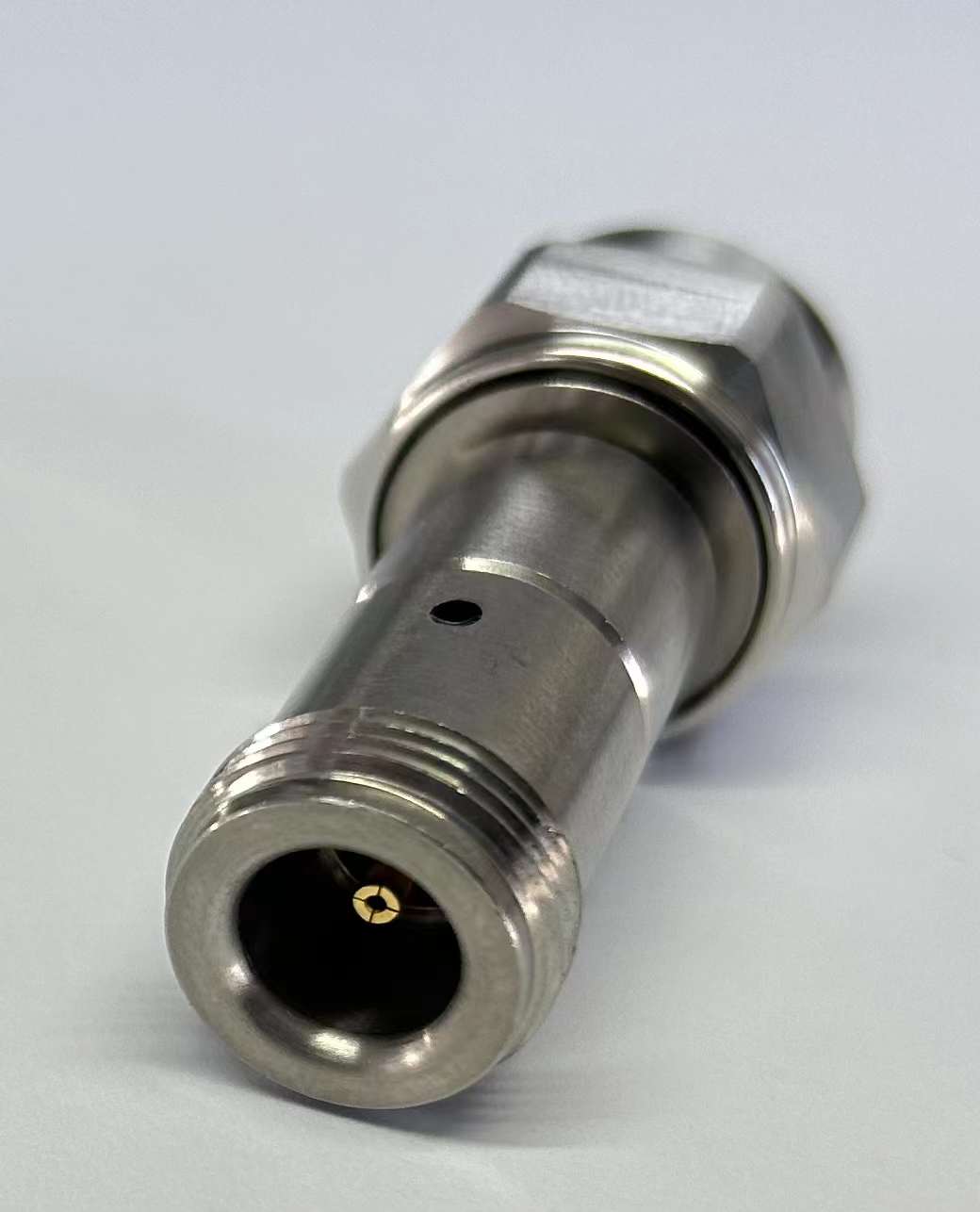

RF impedance matching pad (also referred to as coaxial matching pad)  has N connector in and is 50 Ohm, N connector out and is 75 Ohm. This coaxial N to N impedance matching pad has a female N in and a male N out. Our 50 Ohm N to 75 Ohm N impedance matching pad is manufactured with a minimum frequency of DC and a maximum frequency of 4 GHz.

This radio frequency 50 Ohm N female to 75 Ohm N male RF impedance matching pad design has a maximum attenuation of 5.7 and an attenuation accuracy of 0.5 dB. Body material of the 50 Ohm to 75 Ohm N To N matching pad is .50 Ohm N female to 75 Ohm N male RF impedance padis rated for a maximum VSWR of 1.35:1 and a maximum input power of 1 Watt.
