SMA In Series Coaxial Adapters

Negotiable
Tel：
+86-013914721637

Product Detail

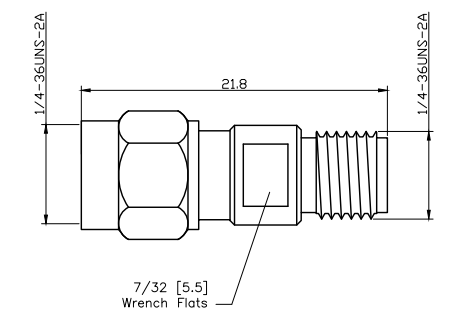

    SMA Male to Female Adapter

    Frequency Range

    DC-27GHz


    VSWR

    1.20 max@18GHz

    1.30 max@27GHz

    Operating Temperature

    -40 to +120C

    Centre Contact

    Gold Plated Beryllium Copper

    Body

    Passivated Stainless Steel

    Insulator

    PTFE

    ADASMAMF27.pdf

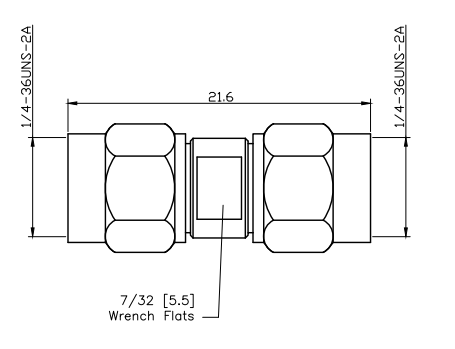

    SMA Male to Male Adapter

    Frequency Range

    DC-27GHz


    VSWR

    1.20 max@18GHz

    1.30 max@27GHz

    Operating Temperature

    -40 to +120C

    Centre Contact

    Gold Plated Beryllium Copper

    Body

    Passivated Stainless Steel

    Insulator

    PTFE


    ADASMAMM27.pdf

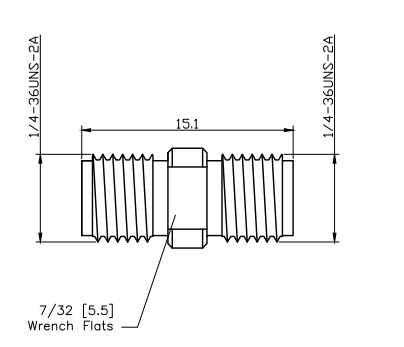

    SMA Female to Female Adapter

    Frequency Range

    DC-27GHz


    VSWR

    1.20 max@18GHz

    1.30 max@27GHz

    Operating Temperature

    -40 to +120C

    Centre Contact

    Gold Plated Beryllium Copper

    Body

    Passivated Stainless Steel

    Insulator

    PTFE

    ADASMAFF27.pdf
