Fixed Attenuators

Product Detail

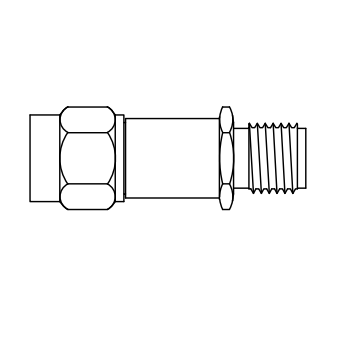

SMA 2 Watt Coaxial Fixed Attenuator,DC~18GHz

Frequency Range	DC-18GHz
Available Values Accuracy of Attenuation 0 through 6dB 7 through 20dB 21 through 30dB VSWR DC  to 4GHz 4GHz  to 8GHz 8GHz  to 12.4GHz 12.4GHz to 18 GHz	0 ,1,2,3,5,6,10,20,30dB   ±0.4dB maximun ±0.5dB maximun ±0.75dB maximun   1.15 maximum 1.20 maximum 1.25 maximum 1.35 maximum
Operating Temperature	-40 to +120C
Centre Contact	Gold Plated Beryllium Copper
Body	Passivated Stainless Steel
Insulator	PTFE	ATT18SMA-XX.pdf



































SMA 2 Watt Coaxial Fixed Attenuator,DC~6GHz

Frequency Range	DC-6GHz
Available Values Accuracy of Attenuation 0 through 6dB 7 through 20dB 21 through 30dB                     40dB VSWR DC  to 6GHz	0 ,1,2,3,5,6,10,20,30dB   ±0.4dB maximun ±0.5dB maximun ±0.75dB maximun ±1.50dB maximun   1.25 maximum
Operating Temperature	-40 to +120C
Centre Contact	Gold Plated Beryllium Copper
Body	Passivated Stainless Steel
Insulator	PTFE	ATT06SMA-XX.pdf

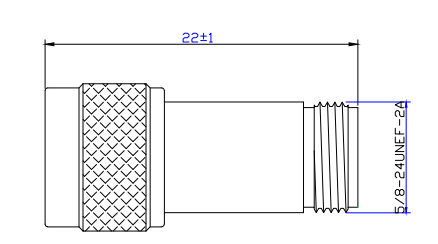

N 2 Watt Coaxial Fixed Attenuator,DC~6GHz

Frequency Range	DC-6GHz
Available Values Accuracy of Attenuation 0 through 6dB 7 through 20dB 21 through 30dB                     40dB VSWR DC  to 6GHz	0 ,1,2,3,5,6,10,20,30dB   ±0.4dB maximun ±0.5dB maximun ±0.75dB maximun ±1.50dB maximun   1.25 maximum
Operating Temperature	-40 to +120C
Centre Contact	Gold Plated Beryllium Copper
Body	Nickel Plated Brass
Insulator	PTFE	ATTNMF6-XX.pdf
